Seamless Pipes
Seamless Pipes
Seamless Pipes

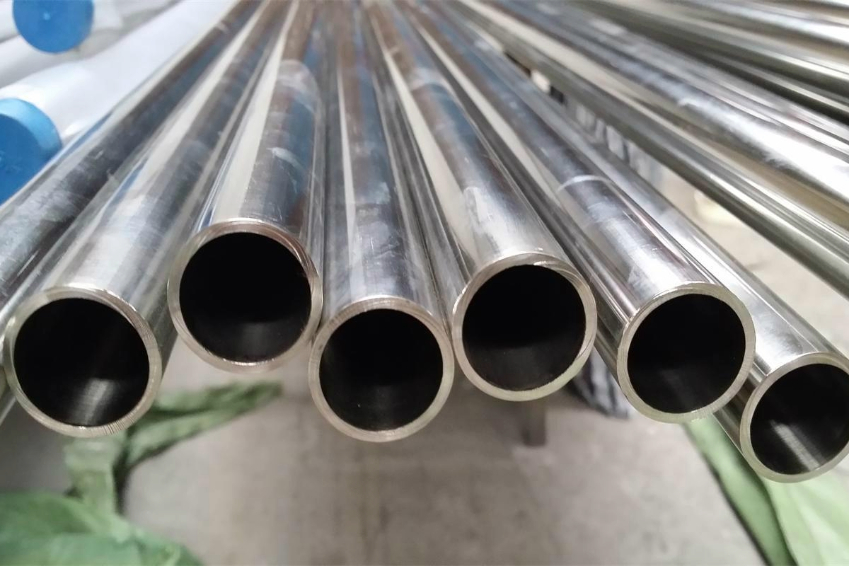

Seamless pipes are manufactured without a welded seam, making them stronger and more reliable for high-pressure applications. These pipes are produced through a hot rolling or cold drawing process, ensuring uniformity in shape and dimensions. They are widely used in industries such as oil & gas, petrochemicals, power plants, and marine applications due to their superior strength, corrosion resistance, and ability to withstand extreme conditions.
Specification Table
| Property | Details |
|---|---|
| Standards | ASTM A106, ASTM A53, ASTM A333, ASTM A335, ASTM A213, ASTM A312, API 5L, EN 10210, DIN 17175 |
| Outer Diameter (OD) | 6 mm to 914 mm (1/8" to 36") |
| Wall Thickness (WT) | SCH 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XS, XXS, custom |
| Length | SRL (5–7 m), DRL (11–13 m), Cut Lengths as required |
| Manufacturing Method | Hot Rolled / Hot Finished / Cold Drawn |
| End Finish | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Surface Finish | Black Painted, Bare, Pickled, Oiled, Galvanized, Varnished |
| Mechanical Properties | Vary by grade; e.g., A106 Gr. B: Yield ≥ 240 MPa, Tensile ≥ 415 MPa; TP316L: Yield ≥ 170 MPa, Tensile ≥ 485 MPa |
| Testing | Hydrostatic, Eddy Current, Ultrasonic, Flattening, Flaring, Impact, Hardness, PMI |
| Heat Treatment | Normalized / Annealed / Quenched & Tempered as per grade |
| Applications | Oil & Gas, Refining, Petrochemical, Power Plant, Boiler, Heat Exchanger, Mechanical, Structural, Cryogenic, Food & Pharma |
| Certifications | EN 10204 3.1 / 3.2, ISO 9001, PED, NACE MR0175, API, IBR, CE |
Available Materials in Pipes & Tubes
| Material | Grades |
| Stainless Steel | Stainless Steel 304 Pipe & Tube, Stainless Steel 304L Pipe & Tube, Stainless Steel 304H Pipe & Tube, Stainless Steel 310s Pipe & Tube, Stainless Steel 310H Pipe & Tube, Stainless Steel 316 / 316L Pipe & Tube, Stainless Steel 316H Pipe & Tube, Stainless Steel 316Ti Pipe & Tube, Stainless Steel 317 / 317L Pipe & Tube, Stainless Steel 321 / 321H Pipe & Tube, Stainless Steel 347 / 347H Pipe & Tube, Stainless Steel 904L Pipe & Tube |
| Carbon Steel | ASTM A53 GR A Pipe & Tube, ASTM A53 GR B Pipe & Tube, ASTM A53 GR C Pipe & Tube, ASTM A333 GR 1 & 6 ASTM A106 GR B Pipe & Tube, ASTM A106 GR C Pipe & Tube, API 5L GR B Pipe & Tube, API 5L X42 / X46 / X52 / X56 / X60 / X65 / X70 Pipe & Tube |
| Alloy Steel | P1 Pipe & Tube, P5 Pipe & Tube, P9 Pipe & Tube, P11 Pipe & Tube, P12 Pipe & Tube, P22 Pipe & Tube, P91 Pipe & Tube, P92 Pipe & Tube |
| Duplex Steel | Duplex 2205 Pipe & Tube, Duplex 2507 Pipe & Tube |
| Super Duplex Steel | Super Duplex 2507 Pipe & Tube, Super Duplex 4501 Pipe & Tube |
| Monel | Monel 400 Pipe & Tube, Monel K500 Pipe & Tube |
| Inconel | Inconel 600 Pipe & Tube, Inconel 625 Pipe & Tube, Inconel 718 Pipe & Tube, Inconel X-750 Pipe & Tube |
| Hastelloy | Hastelloy C22 Pipe & Tube, Hastelloy C276 Pipe & Tube, Hastelloy B2 Pipe & Tube |
| Alloy 20 | Alloy 20 Pipe & Tube |
| Titanium | Titanium Grade 2 Pipe & Tube, Titanium Grade 5 Pipe & Tube, Titanium Grade 7 Pipe & Tube, Titanium Grade 12 Pipe & Tube |
| Cupro Nickel | Cupro Nickel 70/30 Pipe & Tube, Cupro Nickel 90/10 Pipe & Tube |
| Brass | Brass C260 Pipe & Tube, Brass C268 Pipe & Tube, Brass C270 Pipe & Tube |
| Nickel | Nickel 200 Pipe & Tube, Nickel 201 Pipe & Tube |
Key Features
- Manufactured without a welded seam, ensuring superior strength and reliability.
- Suitable for high-pressure and high-temperature applications.
- Available in various materials such as carbon steel, stainless steel, and alloy steel.
- Corrosion-resistant coatings available for extended durability.
